fiber optic ftth box fiber network termination box fiber access terminal box fat fttx
Description
OFS-FTH-224A is widely applied in FTTH network, telecommunication network, CATV network, data communication network and local area network(LAN).

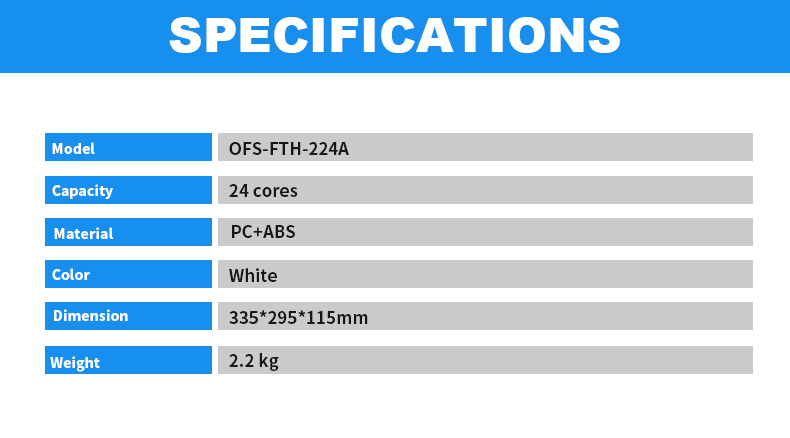

Technical Index
| Model No. | OFS-FTH-224A | Color | Black, Grey White.. |
| Capacity | 24 cores | Protection Level | IP66 |
| Material | PC+ABS, ABS | Flame retardant performance | Non-flame retardant |
| Dimension(L*W*D,MM) | 335*296*117 | Splitter | 1/8 or 1/16 |
Max size(D×W×H): 335 × 296 × 117mm
Weight: 1.75 kg
Radius of curvature: ≥40mm
Splice tray excess loss:≤0.01dB
Stored coiling fiber length:≥1.6m
Max capacity(single fiber): 24 cores
Temperature range: - 40℃ ~ + 70℃
Lateral compression resistance: ≥2000N / 10 cm
Impact resistance:≥20N.m
Features
1.Industry Standard User Interface, is made of high impact plastic.
2.Light and handy with easy maintenance, has special key-operated switches.
3.Anti-UV, Ultra violet resistant and rainfall resistant.
4.Splicing tray is divided into two parts, which is bilevel and turnable.
5.Splicing:12~24cores.

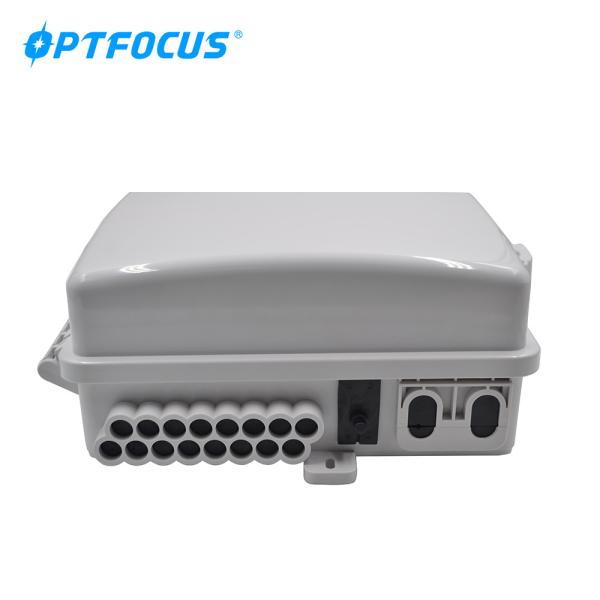

6.3 inlet ports, 16 or 32 outlet ports.
7.Can accommodate PLC splitter and box style splitter. Max splitting :1:16.

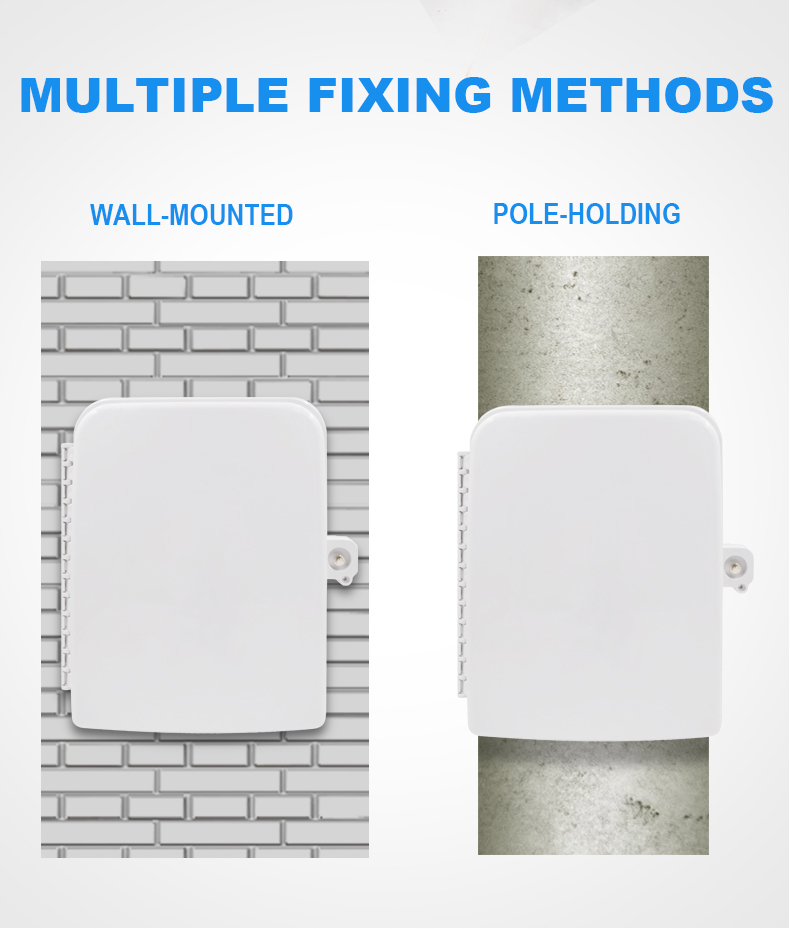

8.Can be used in indoor and outdoor, Wall-mounting.
Application
- Widely used in FTTH access network.
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
Company Profile
Advantage of our company :
① National High-tech enterprise certification；
② Fiber Optical Innovative &production team Over 10 years;
③ Fiber optical active and passive components production Workshop;
④ Strict quality management system;
⑤ Professional One stop supply & service;
⑥ OEM&ODM available;
⑦ Reliable and Timely customer services;
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years’ experience in global sales and services.
Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator.
OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.
Our high quality products and outstanding service will help you win more market and customers.
